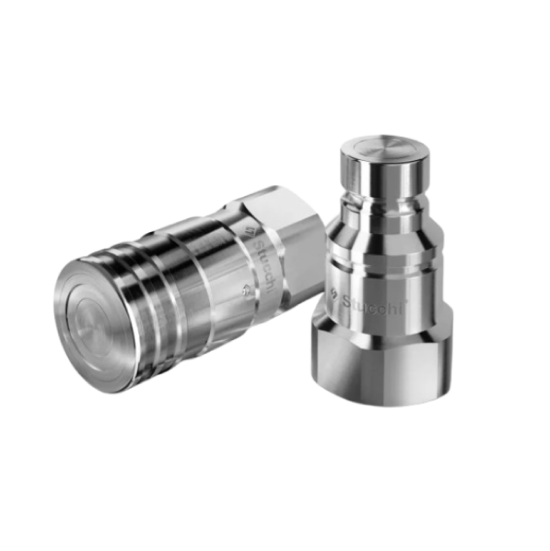

FL

The “FL” series, crafted from AISI 316 stainless steel with Viton seals, is designed for high-corrosion environments and corrosive fluid transfer. Its flat-face design prevents leakage, reduces contamination, and ensures excellent corrosion resistance, making it ideal for offshore, marine, industrial, chemical, pharmaceutical, and food processing applications.

Specifications

• Interchange – ISO 16028
• Locking mechanism – Locking ball, Safety lock
• Sealing – FKM (Viton®)
• Operating pressure – up to 350 bar
• Valving style – Flat Face
• Connection Under Pressure – Not allowed
• Available threads – BSP, NPT
• Flow rate – up to 1000 l/min
• Connection system – Push
• Material/Treatment – Stainless steel (AISI 316L)
• Available sizes – 1/8″, 1/4″, 3/8”, 1/2″, 5/8″, 3/4″, 1″, 1-1/2″, 2″
• Temperature – -15°C / +180°C
