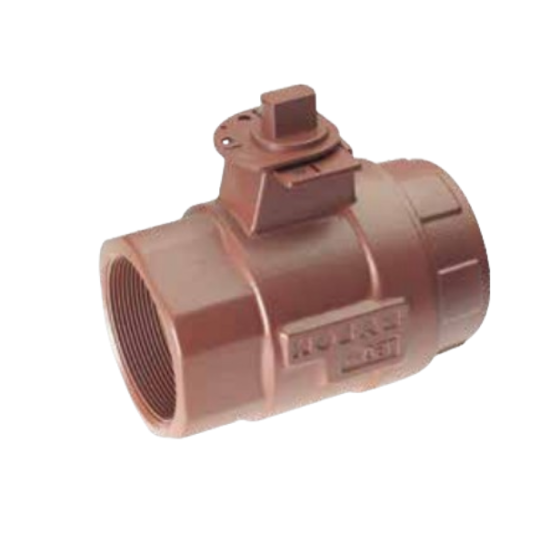

Series S Ductile Iron

The Floating Ball Valves – Series S, made from ductile iron, combine strength and flexibility to deliver consistent and reliable performance in various industrial applications. Featuring female x female threaded ends, these valves are designed for easy installation and long-term durability under challenging conditions.

Specifications

  • Material: Ductile iron body with stainless steel or brass floating ball and reinforced PTFE seals.
  • Pressure Rating: Typically up to 800 PSI, depending on size and application.
  • Thread Standards: BSP or NPT threading available for global compatibility.
  • Size Range: From 1/2″ to 4″, catering to diverse pipeline requirements.
  • Temperature Range: Operational from -20°C to +180°C (-4°F to +356°F).
Enquiry View Data Sheet
Categories:,

Description

  • Floating Ball Technology: Provides a secure seal, reducing leakage under high pressure.
  • Ductile Iron Construction: Offers excellent strength, impact resistance, and flexibility compared to cast iron.
  • Threaded Female x Female Ends: Ensures quick and secure connections with industry-standard threading.
  • Full Bore Design: Maximizes flow efficiency with minimal pressure drop.
  • Anti-Corrosion Coating: Protects the valve against rust and environmental damage.
  • Wide Compatibility: Suitable for various threading standards, including BSP and NPT.
