Gorilla

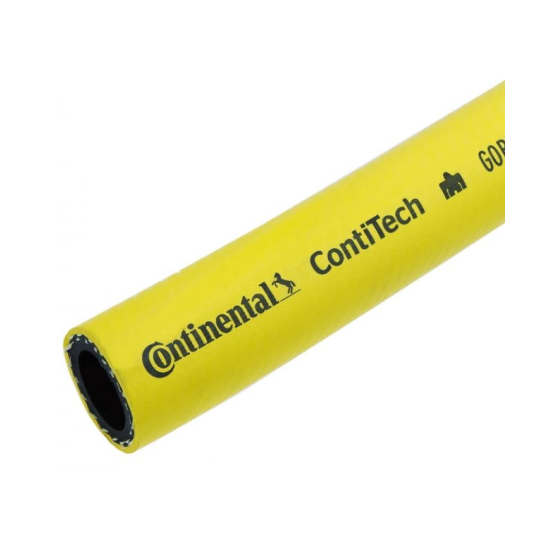

A high-performance multipurpose industrial hose suitable for factories, construction, agriculture, mining, oil and gas, and shipbuilding. Rated up to 500 psi, it features a crush-resistant build and a premium Carbryn™ cover for exceptional abrasion resistance.

Specifications

•  Construction Tube: Nitrile Synthetic Rubber, ARPM Class A (High Oil Resistance)
•  Cover: Yellow Carbryn™ Synthetic Rubber, ARPM Class A (High Oil Resistance) (MSHA Approved)
•  Reinforcement: Spiral Flexten® Yarn, 2” is Braided Synthetic Yarn
•  Coupling: *Refer to the Continental Industrial Hose Assembly Manual for crimp specifications. *(Ready 2 Go logo)- Coupled assemblies available.
•  Non Stock / Sizes: For special production run minimum requirements, see Appendix D.
•  Temperature Range: -20°F to 190°F (-29°C to 88°C)
•  Order Codes: 569-035 (1/4″ – 1 1/2″), 536-446 (2”)
•  Packaging: 3/16”– 3/4” – 500’ reels, maximum 3 pieces, 50’ increments, 1” – 450’ reels, maximum 3 pieces, 50’ increments, 1-1/4” – 250’–400’ reels, maximum 3 pieces, 50’ increments, 1-1/2” – 150’–300’ reels, maximum 3 pieces, 50’ increments, 2” – 200’ carton, maximum 3 pieces, 50’ increments, Coupled assemblies available: 1/4”, 3/8”, 1/2”, and 3/4”.
