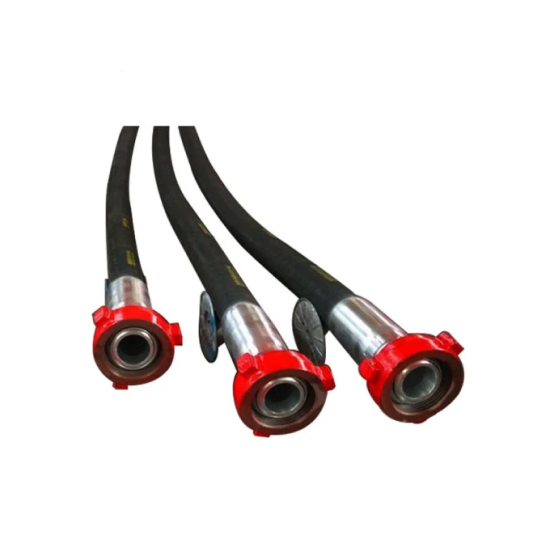

Oil Rig HW

Oil Rig HW is designed for offshore oil rigs to transfer petroleum-based products with up to 50% aromatic content. Its special tube and cover compound provide maximum oil resistance, while the double wire helix ensures exceptional stability. This hose is rated for a 290 PSI (20 Bar) working pressure.

Specifications

•  Construction Tube: Black Nitrile, ARPM class A (high oil resistance)
•  Cover: Black Neoprene (MSHA fire-resistant)
•  Reinforcement: Spiral plied fabric with dual wire helix
•  Temperature Range: -35°F to 200°F (-37°C to 93°C)
•  Order Codes: 543-297 (3-6″), 541-297 (8-12″)
•  Packaging: 30.5m coils (available in other lengths up to max 122m)
