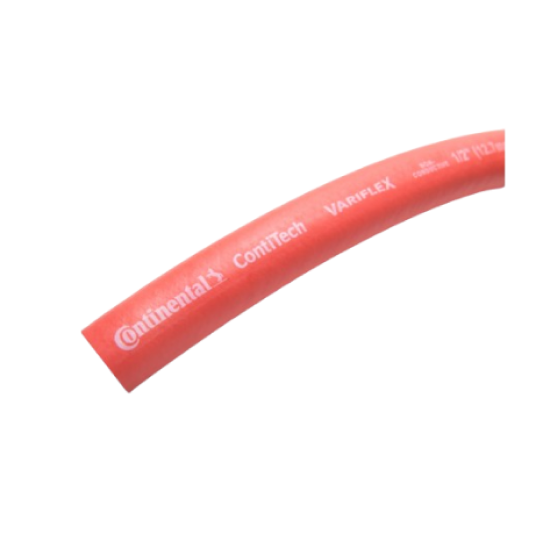

Variflex

An economical, high-quality general-purpose hose for industrial air service, compressor lines, pneumatic tools, and low-pressure spray. Designed for high oil resistance, it is non-conductive with electrical resistance over 1 megohm per inch at 1000 V DC and available in 200 and 300 PSI working pressures.

Specifications

•  Construction Tube: Nitrile Synthetic Rubber, ARPM Class A (High Oil Resistance)
•  Cover: Red, Blue, or Black Chemivic™ Synthetic Rubber, ARPM Class A (High Oil Resistance) Spiral Synthetic Yarn (3/16”– 1½”), Braided Synthetic Yarn (2”)
•  Reinforcement: Spiral Synthetic Yarn (3/16″-1½”), Braided Synthetic Yarn (2″)
•  Coupling: *Refer to the Continental ContiTech Industrial Hose Assembly Manual for crimp specifications. *(Ready 2 Go logo)- Coupled assemblies available.
•  Non Stock / Sizes: For special production run minimum requirements, see Appendix D.
•  Temperature Range: -20°F to 210°F (-29°C to 99°C)
•  Order Codes: 569-006 (Black), 569-008 (Red 5/16˝ – 1 1⁄2˝), 569-037 (Blue 3/8″ – 1″), 536-037 (Red 2˝)
•  Packaging: 3/16”– 3/4” – 500’ reels, max. 3 pieces, 50’ increments, 1 1/4” – 400’ reels, max. 3 pieces, 50’ increments, 1” – 450’ reels, max. 3 pieces, 50’ increments, 1 1/2” – 300’ reels, max. 3 pieces, 50’ increments, Coupled assemblies available in 1/4”, 3/8”, and 1/2” in red., 1 1/2” carrete 300′, 3 piezas máximo, múltiplos de 50′, abajo de 1 1/2” carrete 300′
